Description

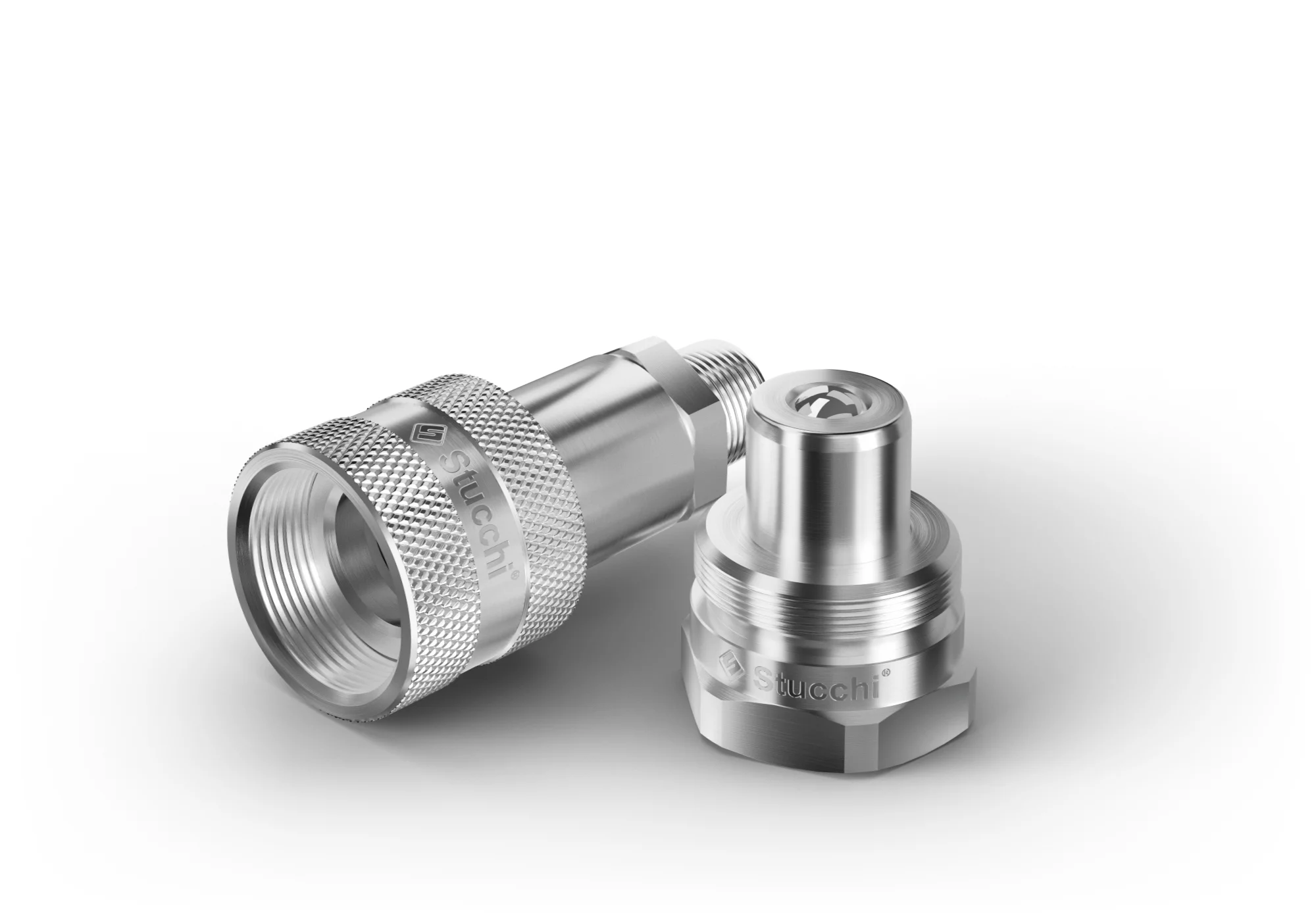

“IV-HP” is a high pressure screw coupling used to connect coupling series with ball valves. This series is intended for high pressure hydraulic applications up to 700 bar / 10152 psi. The couplings are manufactured with high resistance carbon steel with zinc plated treatment. They are interchangeable with similar couplings existing on the market and used mainly for hydraulic jacks and cylinders.
Benefits
- Ball valves in hardened steel provide a good wearing resistance.
- Compact slim design.
- Simple to use.
Additional information
| Interchange | With similar couplings |
|---|---|
| Valving Style | Ball |
| Connection System | Screw |
| Locking Mechanism | Screw to Connect |
| Connection Under Pressure | Not Allowed |
| Material / Treatment | Carbon Steel, Cr3 |
| Sealing | Nitrile NBR |
| Available Threads | NPT |
| Available Sizes | 1/4", 3/8" |
| Operating Pressure | up to 700 bar |
| Flow Rate | up to 23 l/min |
| Temperature | -20°C / +100°C |
